The Journey from Conventional Silicon Solar Cells to Perovskite Solar Cells: A New Dawn in Photovoltaics

The Journey from Conventional Silicon Solar Cells to Perovskite Solar Cells: A New Dawn in Photovoltaics

The quest for sustainable, efficient, and cost-effective renewable energy solutions has been a driving force in the evolution of solar cell technology. For decades, silicon-based solar cells have dominated the photovoltaic (PV) market, providing a reliable and proven means of harnessing solar energy. However, the emergence of perovskite solar cells (PSCs) in recent years has sparked excitement and optimism, offering a promising alternative that could redefine the future of solar energy. This blog explores the journey from conventional silicon solar cells to the revolutionary perovskite solar cells, with a deep dive into the unique properties, advancements, challenges, and future potential of perovskites.

The Era of Silicon Solar Cells

Silicon solar cells have been the backbone of the photovoltaic industry since the 1950s, when the first practical silicon solar cell was developed at Bell Labs, achieving an efficiency of about 6%. Silicon’s dominance can be attributed to several factors. Firstly, silicon is the second most abundant element in the Earth’s crust, making it readily available for large-scale production. Secondly, decades of research and development have refined silicon-based technologies, leading to efficiencies approaching 28% for crystalline silicon cells, close to the theoretical Shockley-Queisser limit of approximately 30% for single-junction cells.

Silicon solar cells come in two primary forms: monocrystalline and polycrystalline. Monocrystalline silicon cells, made from a single crystal structure, offer higher efficiencies due to their uniform lattice, which allows for better charge carrier mobility. Polycrystalline cells, composed of multiple crystal grains, are less expensive to produce but slightly less efficient due to grain boundaries that can impede electron flow. Despite these advancements, silicon solar cells face limitations. Their production is energy-intensive, requiring high temperatures (exceeding 1000°C) and vacuum conditions, which increase costs and environmental impact. Additionally, silicon cells are rigid, heavy, and require thick, pristine layers to absorb light effectively, making them less ideal for flexible or lightweight applications.

As the global demand for renewable energy grows, the limitations of silicon—high production costs, rigidity, and a nearing efficiency ceiling—have driven researchers to explore alternative materials. Enter perovskite solar cells, a third-generation photovoltaic technology that has rapidly risen to prominence, offering a compelling blend of high efficiency, low cost, and versatility.

The Rise of Perovskite Solar Cells

Perovskite solar cells derive their name from the crystal structure of the materials they are made from, which resembles the naturally occurring mineral perovskite (calcium titanium oxide, CaTiO3). In the context of solar cells, perovskites are typically hybrid organic-inorganic compounds with the general formula ABX3, where A is a monovalent cation (e.g., methylammonium, formamidinium, or cesium), B is a divalent metal (e.g., lead or tin), and X is a halide anion (e.g., iodide, bromide, or chloride). This unique structure grants perovskites exceptional optoelectronic properties, making them a game-changer in photovoltaics.

The journey of PSCs began in 2009, when researchers first used methylammonium lead triiodide (MAPbI3) as a sensitizer in dye-sensitized solar cells, achieving a modest power conversion efficiency (PCE) of 3.8%. This breakthrough, published in the Journal of the American Chemical Society, marked the debut of perovskites in photovoltaics. Rapid progress followed, with efficiencies soaring to over 25% by 2023 and exceeding 26% by 2025 for single-junction PSCs, rivaling and even surpassing many conventional silicon cells. Perovskite-silicon tandem cells, which combine the two materials to capture a broader spectrum of sunlight, have achieved efficiencies nearing 34%, pushing the boundaries beyond silicon’s theoretical limits.

Why Perovskites Stand Out

Perovskite solar cells offer several advantages that set them apart from silicon-based cells:

1. High Efficiency and Tunable Bandgap

   Perovskites possess a high absorption coefficient (approximately 105 cm−1), allowing them to absorb light effectively even in thin films (hundreds of nanometers thick, compared to hundreds of micrometers for silicon). Their bandgap, ranging from 1.3 to 2.2 electron volts (eV), is tunable by adjusting the composition of cations, metals, and halides. This flexibility enables optimization for specific parts of the solar spectrum, making perovskites ideal for tandem or multi-junction cells, where they can be stacked with silicon or other materials to achieve higher efficiencies.

2. Low-Cost Fabrication

   Unlike silicon, which requires high temperatures and energy-intensive processes, perovskites can be fabricated using simple, low-cost methods such as solution processing (e.g., spin coating, blade coating, slot-die coating) or vapor deposition. These techniques, often performed at low temperatures, reduce energy consumption and enable production on flexible substrates like plastic or metal foils, opening doors to innovative applications.

3. Defect Tolerance

   Perovskites exhibit remarkable tolerance to impurities and structural defects, a stark contrast to silicon, which demands high purity to function efficiently. This property allows perovskites to maintain high performance despite imperfections, reducing the need for costly purification processes and enhancing their commercial viability.

4. Versatility and Flexibility

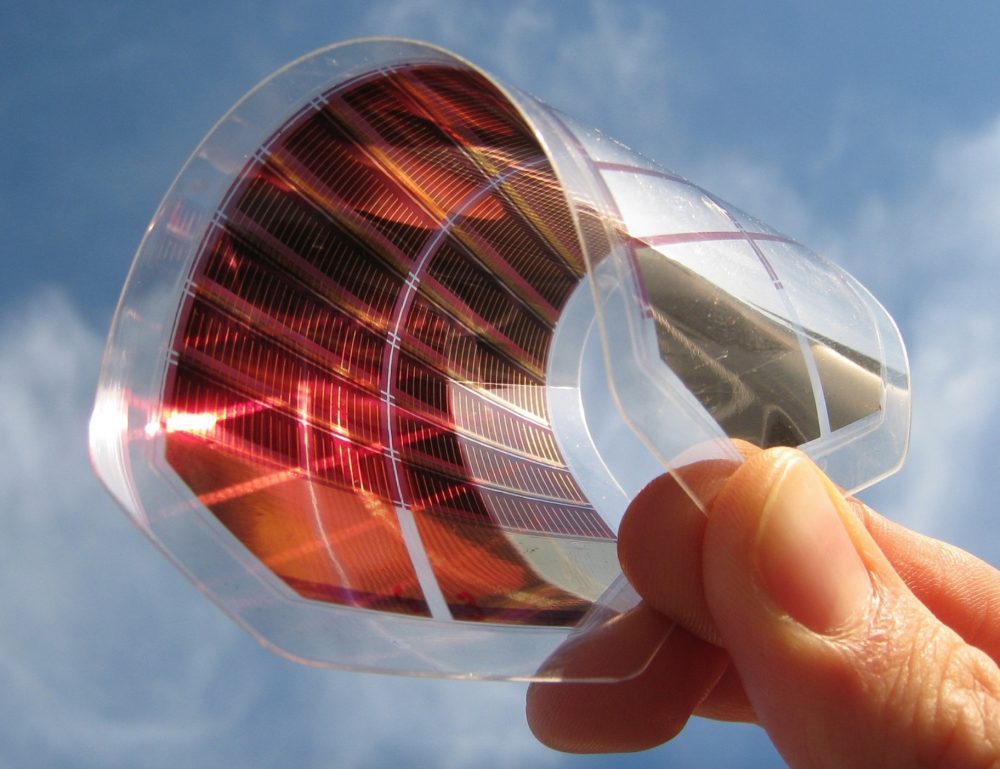

   The ability to produce thin, lightweight, and flexible perovskite films makes them suitable for a wide range of applications, from building-integrated photovoltaics (BIPV) to wearable electronics and space applications. Silicon cells, being rigid and bulky, are less adaptable to such diverse uses.

Advancements in Perovskite Solar Cells

The rapid rise in PSC efficiency is the result of extensive research into materials, fabrication techniques, and device engineering. Key advancements include:

1. Material Engineering

  Early PSCs relied on methylammonium lead iodide (MAPbI3), with a bandgap of 1.55 eV, ideal for single-junction cells. However, formamidinium lead iodide (FAPbI3) offers a narrower bandgap (around 1.48 eV), improving near-infrared absorption and thermal stability. Inorganic perovskites like cesium lead iodide (CsPbI3) have been explored for better thermal stability, though they require high-temperature annealing to form a stable cubic phase. Mixed-cation and mixed-halide perovskites, such as those incorporating chlorine, bromine, and iodine, have addressed phase segregation and boosted efficiencies, with triple-halide alloys achieving PCEs of over 20% for single-junction cells and 27% for perovskite-silicon tandems.

2. Fabrication Techniques

  Solution processing, such as spin coating and blade coating, remains the most cost-effective method for producing perovskite films. Innovations like slot-die coating and inkjet printing have advanced scalability, enabling large-area PSCs with efficiencies up to 22% for 156 mm × 156 mm modules. Vapor deposition methods, including chemical vapor deposition and co-evaporation, produce uniform, high-quality films, critical for commercial-scale production. Hybrid approaches, combining solution and vapor techniques, have further enhanced film quality and device performance.

3. Charge Transport Layers

  The electron transport layer (ETL) and hole transport layer (HTL) are crucial for efficient charge extraction. Titanium dioxide (TiO2) is a common ETL but suffers from UV-induced degradation. Alternatives like zinc oxide (ZnO) and tin oxide (SnO2) have shown promise, with ZnO-based PSCs achieving PCEs of 22%. Silicon-doped zinc tin oxide (SZTO) has improved charge extraction, yielding PCEs of 13.4%. Novel materials and defect passivation strategies, such as surface-anchoring alkylamine ligands, have reduced recombination losses, boosting open-circuit voltage and overall efficiency.

4. Tandem Structures

  Perovskite-silicon tandem cells have emerged as a breakthrough, combining wide-bandgap perovskites (1.6–1.7 eV) with silicon (1.1 eV) to capture a broader spectrum. Recent achievements include a 27.8% efficiency using hybrid fabrication methods and a record-breaking 33.9% for triple-junction perovskite/perovskite/silicon cells, demonstrating the potential to surpass silicon’s limits.

Challenges Facing Perovskite Solar Cells

Despite their promise, PSCs face significant hurdles on the path to commercialization:

1. Stability

   Perovskites are notoriously sensitive to moisture, oxygen, heat, and light, leading to degradation. For instance, MAPbI3 decomposes in humid conditions, and prolonged exposure to light can cause phase segregation in mixed-halide perovskites. Strategies to enhance stability include encapsulation techniques, novel charge transport materials, and the use of formate-doped FAPbI3, which retained 80% of its initial efficiency after 1000 hours at 60°C and 20% humidity. However, achieving lifetimes comparable to silicon’s 25+ years remains a challenge.

2. Scalability

   Most high-efficiency PSCs are small-scale (0.01 cm²), with efficiency dropping as area increases due to defects and non-uniformity. Scalable methods like slot-die coating and roll-to-roll processing are being developed, but large-area modules (e.g., 110 m² systems by WonderSolar) still lag behind silicon in performance and consistency.

3. Toxicity

   Lead-based perovskites, the most efficient to date, pose environmental and health risks. Lead leakage from damaged panels is a concern, prompting research into lead-free alternatives. Tin-based perovskites have reached PCEs of 10–12%, but their efficiency and stability fall short of lead-based counterparts. Bismuth-based perovskites, while less toxic, have large bandgaps unsuitable for single-junction cells, though they show promise in tandem configurations.

4. Commercial Viability

   Despite low material and production costs, PSCs must compete with silicon’s established infrastructure, reliability, and market share (over 80%). Standardized testing protocols for stability and accelerated aging tests are needed to predict long-term performance and build consumer trust.

Future Prospects and Applications

The future of perovskite solar cells is bright, with ongoing research addressing key challenges and unlocking new applications:

1. Improved Stability and Sustainability

  Advances in lead-free perovskites, such as tin- and bismuth-based materials, and better encapsulation techniques will enhance environmental safety and durability. Research into degradation mechanisms and passivation strategies continues to extend PSC lifetimes.

2. Scalable Production

  Innovations in roll-to-roll processing and large-area fabrication methods will bridge the gap between lab-scale and industrial-scale production, reducing costs and enabling mass adoption.

3. Diverse Applications

  Perovskites’ flexibility and lightweight nature make them ideal for building-integrated photovoltaics (BIPV), where they can replace conventional materials in roofs, facades, and windows. Their compatibility with flexible substrates supports wearable electronics, such as solar-powered smartwatches and sensors. In space, lightweight and radiation-tolerant PSCs could power satellites and missions. Perovskite-based tandem cells, integrated with silicon or copper indium gallium selenide (CIGS), promise efficiencies beyond 30%, revolutionizing the PV market. Additionally, perovskites show potential as light-emitting diodes (LEDs) and lasers, expanding their role beyond photovoltaics.

4. Commercialization

  The levelized cost of electricity (LCOE) for PSCs (4.34 US cents kWh−1) is already competitive with silicon (5.5 US cents kWh−1), and tandem configurations offer further savings. As stability and scalability improve, PSCs could challenge silicon’s dominance, driving a new era of affordable, efficient solar energy.

The journey from conventional silicon solar cells to perovskite solar cells reflects the relentless pursuit of sustainable energy solutions. Silicon has laid a strong foundation, with decades of refinement and market dominance. However, perovskite solar cells, with their remarkable efficiency gains (from 3.8% to over 26% in just over a decade), low-cost fabrication, and versatility, are poised to transform the photovoltaic landscape. While challenges like stability, scalability, and toxicity persist, ongoing research and innovation are paving the way for a future where PSCs complement or even surpass silicon. From tandem cells to flexible, lightweight modules, perovskites offer a vision of a cleaner, more adaptable energy future. The road ahead is complex, but the potential of perovskite solar cells signals a new dawn in renewable energy.
